HeartbeatAMP

Stethoscope to heartbeat monitoring

HeartbeatAMP device

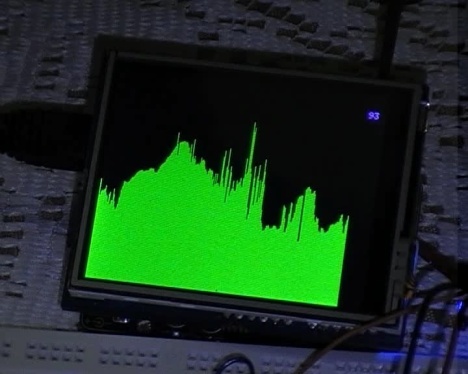

Real-time frequency-domain visualization of cardiac acoustic signals captured via a modified stethoscope transducer, rendered on a low-power embedded display. The spectral amplitude distribution reflects the harmonic content of the S1 and S2 heart sounds.

I've been toying around with the idea of heartbeat monitoring and the possibilities it has.

Hence, I modified an old stethoscope, interfaced it to a Microphone, and used a line-in input to machine. Presently I am trying to get a realtime visual interpretation of whats beating inside our bodies. Maybe this could be extended to cloud where real-time analysis is possible.

Presently electronic stethoscopes cost anywhere between 200-400$ and are limited by their functionality (as they just display a graph/bpm).

The aim is to create an interface between our bodies and visual/network power of computers.

What if music devices could change genres based on our heart-rate. A soothing song to relax us when the heart beats faster.

Heartbeat monitoring device
Integrated wearable sensor module shown alongside a Hi-Tec hiking boot with an embedded Lechal haptic insole, demonstrating the convergence of physiological monitoring and pedestrian navigation hardware in a single footwear platform.

DIY instructions coming soon, if you're interested in collaborating, ping me up!
